CIRS 610 AAPM CT性能模体,CIRS 610模体

CIRS 610 AAPM CT性能模体,CIRS 610模体

型号:CIRS 610 类别: 质控模体 品牌:美国CIRS pdf资料: CIRS 610 AAPM CT性能模体,CIRS 610模体.pdf
采购热线:0755-28896837  13632925349 在线咨询产品    CIRS 610 AAPM CT性能模体,CIRS 610模体在线咨询QQ:274798107
CIRS 610 AAPM CT性能模体,CIRS 610模体

CIRS 610 AAPM CT性能模体,CIRS 610模体为用户提供了一个测量十个不同CT性能参数的单一测试对象。模体设计基于美国医学物理学家协会CT扫描仪Phantoms的报告#1中提出的指南。报告#1的目标是“(1)定义CT扫描仪的”性能“,(2)描述通过使用特定的模体进行性能测试的方法。

CT号线性插入物,高对比分辨率插入物和切片宽度插入物被容纳在8.5“直径的PMMA水箱中,其具有快速断开阀,以便于在使用之间填充和排出。

对比测试物体粘附在包括两排直径为1至0.125“的腔体的罐底部。空腔可以填充各种解决方案进行对比评估。一个铝排列的插入物被纳入坦克的盖子,并且可以互换与一个聚苯乙烯TLD插入物为剂量测量。


CIRS 610 AAPM CT性能模体,CIRS 610模体测量能力
噪声
大小独立
灵敏度/可检测性
辐射剂量
机械对齐
空间均匀性
光束硬化
HU线性
切片厚度
空间分辨率和线传播功能

CIRS 610 AAPM CT性能模体,CIRS 610模体包括的材料
具有骨骼结构的组织等效躯干腔
可移动的肺,心脏,肝脏,胰腺,脾脏和肾脏
管道,耦合器,真空泵和硬件
泡沫衬里的手提箱
技术手册

CIRS 610 AAPM CT性能模体,CIRS 610模体保修信息
4年保修

CIRS 610

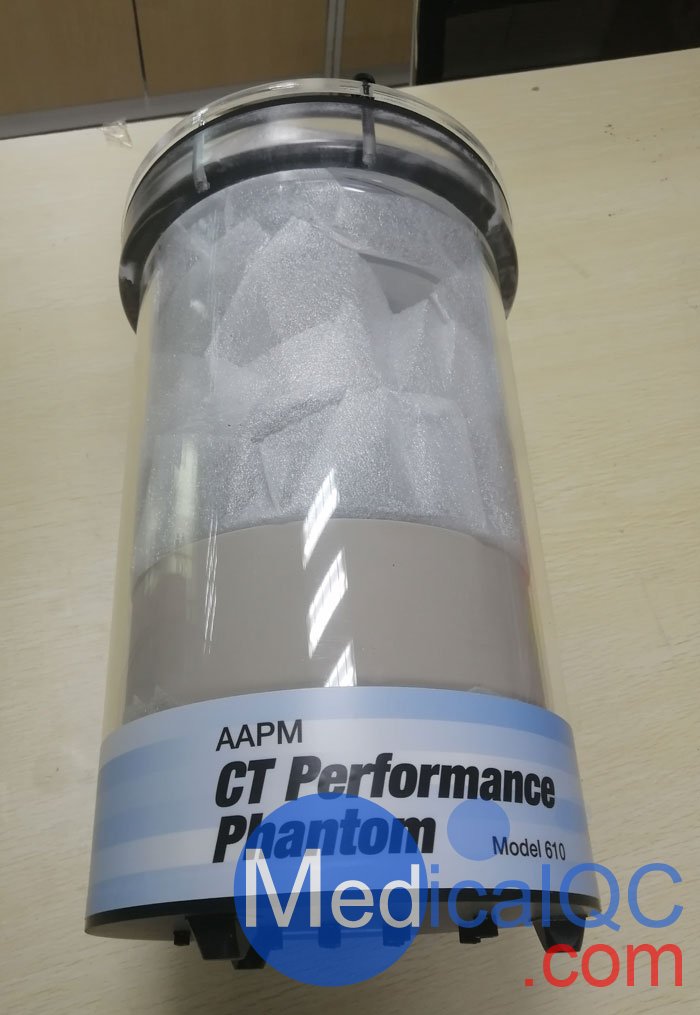

CIRS 610 AAPM CT性能模体,CIRS 610模体实拍图

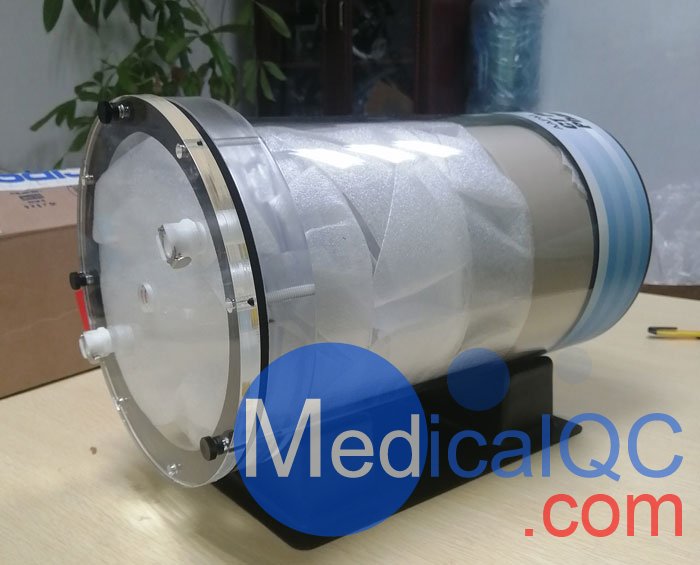

CIRS 610 AAPM CT性能模体,CIRS 610模体实拍图

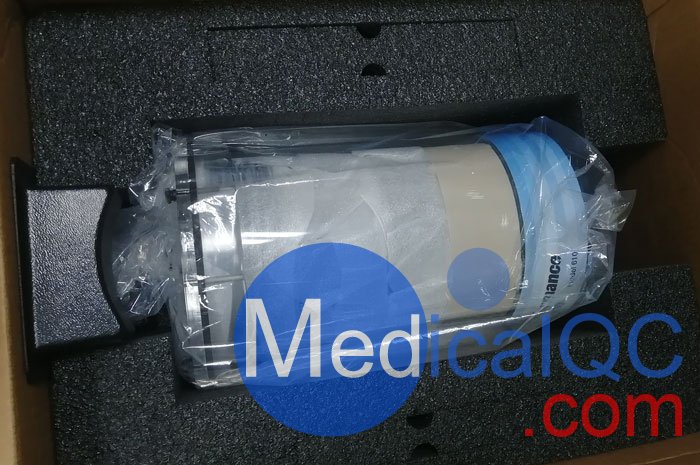

CIRS 610 AAPM CT性能模体,CIRS 610模体实物图

CIRS 610 AAPM CT性能模体,CIRS 610模体英文介绍:
The CIRS Model 610 AAPM CT Performance Phantom offers the user a single test object that measures ten distinct CT performance parameters. The phantom design is based on the guidelines presented in Report #1 of the American Association of Physicists in Medicine Task Force on CT Scanner Phantoms.  The goals of report #1 were to “(1) define ‘performance’ of a CT scanner and (2) describe methods of performance testing through utilization of particular phantoms.”

A CT number linearity insert, high contrast resolution insert and slice width insert are housed in an 8.5 “ diameter PMMA water tank with quick disconnect valves for ease of filling and draining between use.  Also included is a 0.25” bone equivalent ring that can be fit over the inserts to evaluate the effects of beam hardening.

A contrast test object is adhered to the bottom of the tank that includes two rows of cavities from 1 to 0.125” diameter.  The cavities can be filled with various solutions for contrast evaluation.   An aluminum alignment insert is incorporated in the lid of the tank and can be interchanged with a polystyrene TLD insert for dose measurements. A user’s manual, holding cradle, filling tubes and other accessories are included.

Noise

Size Independence

Sensitivity / Detectability

Radiation Dose

Mechanical Alignment

Spatial Uniformity

Beam Hardening

HU Linearity

Slice Thickness

Spatial Resolution and line spread function
